      Flat bracket for the connection between Solar rails and double-threaded screws.

      Flat connection bracket SSP A2

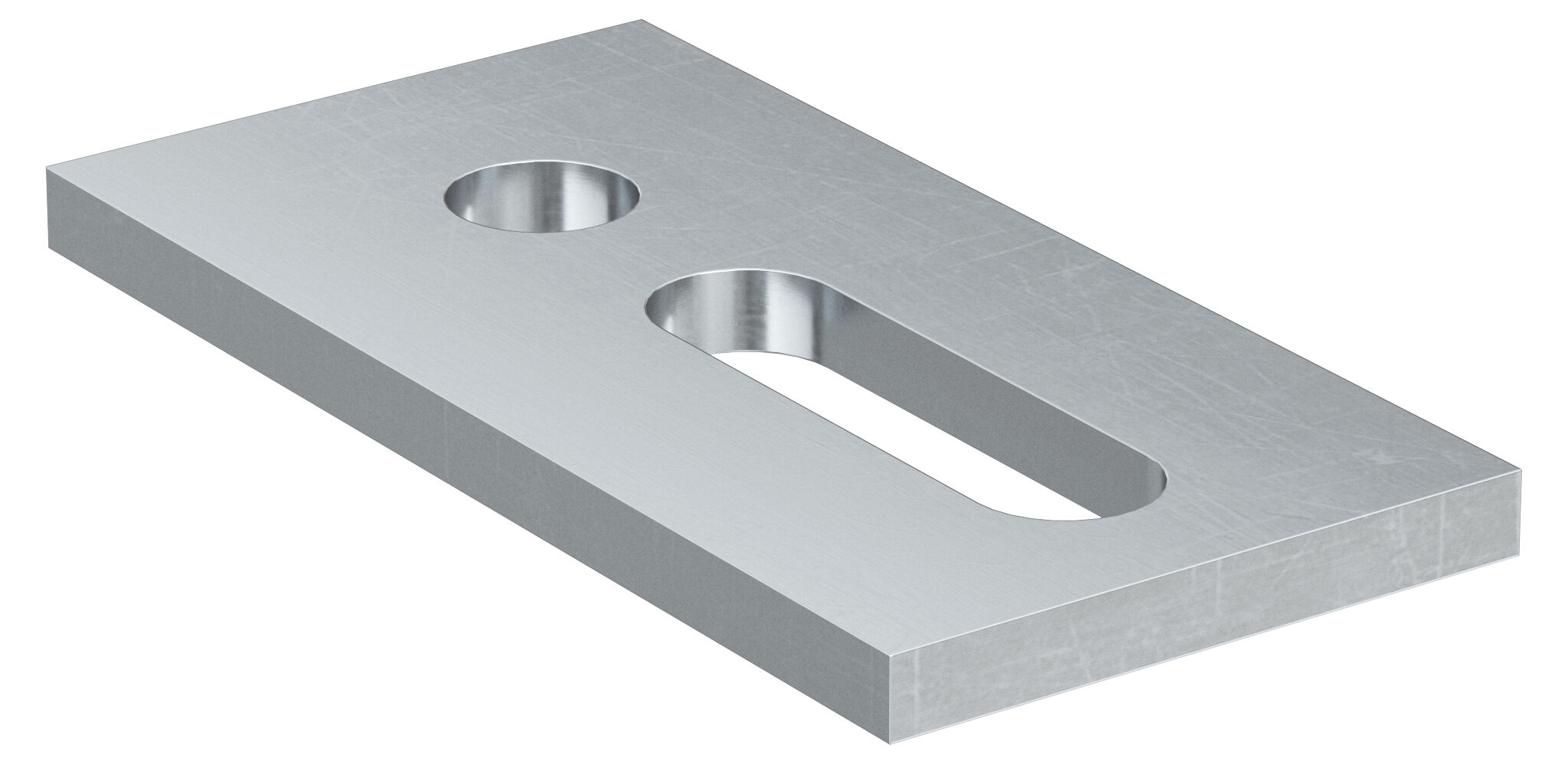

      SSP A2 is the flat bracket for connecting Solar rails with STSI and STSR double-threaded screws. SSP can be connected to the rail through its lower side using SKS screws and MU F M8 nuts or RHS hammer head screws. SSP is available in two variants with hole for M10 bars or with hole for M12 bars.
      Produktne variante
      Download of image data

      Produktne variante

      (0) produktnih variant (s)
      Hole-ø
      Installation torque
      Amount
      GTIN (EAN-Code)
      Poglej (0) od (1) rezultat (s)

      Opis izdelka

      Advantages
      • Easy installation thanks to the slotted hole that allows to ajust the positioning of the rail.
      • Two versions available to fit all the STSR and STSI double-threaded screws variants.
      Properties
      • Plates in stainless steel X5CrNi 18-10 (A2) according to EN 10088-2:2014.

      Dovoljenje aplikaciji

      Applications
      • PV panels installation on roofs in combination with STSR and STSI double-threaded screws.
      • Compatible with SolarFish H33, SolarFish H44 and SolarFish H83 rails.
      Dovoljenja
      • TUV - R 60154136

      Navodila uporabe

      Functionality
      • Insert the bracket between the stud screw STSR/STSI 2 nuts through the circular hole.
      • Use the stud screw STSR/STSI lower nut for adjusting the bracket position.
      • Tighten the 2 nuts.
      • Connect the Solar rail to the bracket and adjust its position through the slotted hole using SKS M8 x 20 A2 or RHS M8 x 20 A2 screws and MU F M8 flanged hex nut.
